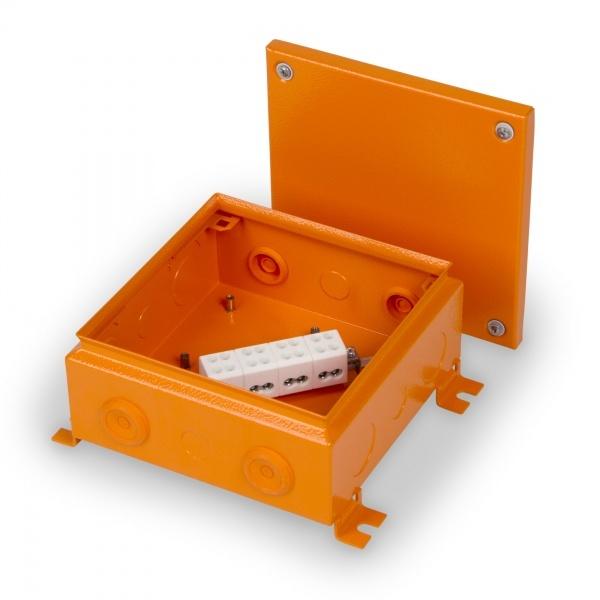

Content for complete enclosures : Enclosure base, cover, cover screws, screw anchors for wall/celing mounting, terminal rail, ceramic terminals, rubber grommets.

Fire protection junction boxes are designed and manufactured to maintain functionality for 30-90 minutes in case of fire which, are avaible in steel or plastic enclosures. Ensto also manfactures its own high temperature resistant ceramic terminals.

Specifications

• Dimensions: 220 x 220 x 115 mm
• Terminal:  4 way 2.5-16mm
• Code: FPT2222FE416.4
• Number of inlets: 12
• Base Materials: painted steel
• Cover Materials: painted steel
• Wall Fastening Possible: True
• IP Rating: IP65
• IK Rating : IK09
• Chemical Resistance: True

Temperatures

• Flammability Rating: UL 746C 5 inch flame test
• Operating Temperature: -40 ... +80 °C
• Short Term Temperature Range: -40 ... +120 °
• Standards Tested To: EN60670-22:2006, EN60947-7-1:2009, EN60998-2-1:2004, EN60670-1:2005, DIN4102-12.

For stp. dwg. and dxf. files, please click here.
