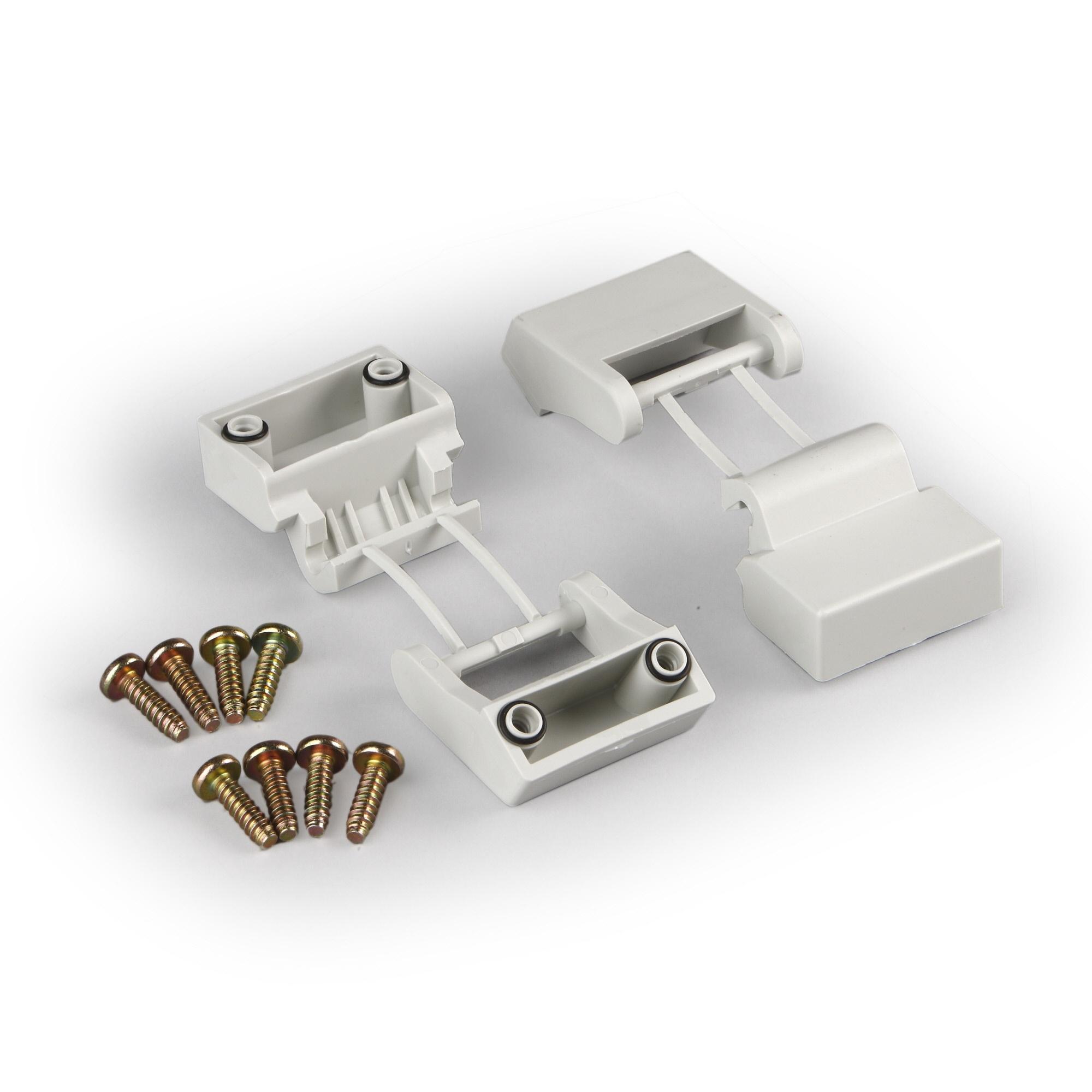

Content : x2 hinges , misc fixings

Hinge pair, for 300/600 mm Cubo P cover side. When hinging a cover in Cubo P, the PHI1 hinge needs to be used as there is an extra lip in the Cubo P side that isn't in the Cubo O. However, if the hinge is to be mounted to an extension frame, you can use an OHI1 which is a more compact hinge.

Specifications

• Code: PHI1
• Size: 400/600mm side
• Materials: Polycarbonate
• Chemical Resistance: True

Temperatures

• Flammability Rating: UL 746C 5 inch flame test
• Operating Temperature: -40 ... +80 °C
• Short Term Temperature Range: -40 ... +120 °
• Standards Tested To: EN 62208, UL 508A
