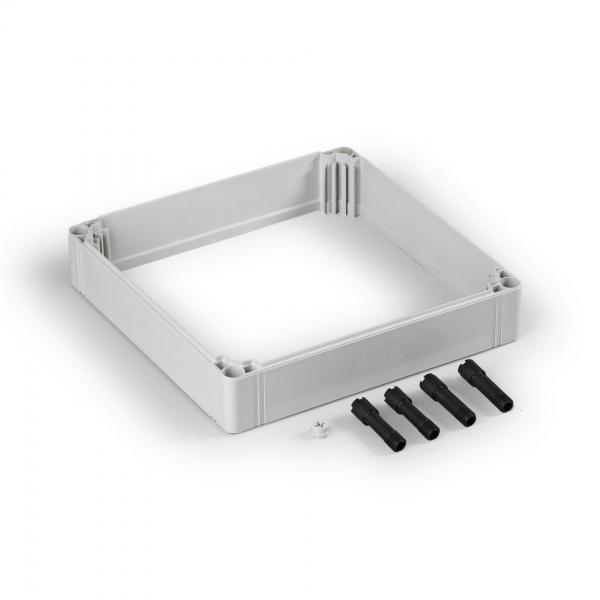

Content : Extension frame, mounting screws, gasket
Thermoplasic Cubo O or P extension frame. Adds an extra 55mm in height to any Cubo O or P enclosure, you can add more than one extension frame to an enclosure however, enclosures with three extension frames have been tested to IP65 & IK08. More than three extension frames can be added, but the IP & IK rating hasn't been tested.
Specifications
- Dimensions: 300 x 600 x 55 mm
- Code: OPCP306006E
- Base Materials: Polycarbonate
- IP Rating: IP66
- IK Rating : IK08
- Chemical Resistance: True
Temperatures
- Flammability Rating: UL 746C 5 inch flame test
- Operating Temperature: -40 ... +80 °C
- Short Term Temperature Range: -40 ... +120 °
- Standards Tested To: EN 62208, UL 508A
For stp. dwg. and dxf. files, please click here.
