Outdoor Meter & Distribution
Overview:
Specifications:
Distribution and meter board that needs to be installed outdoors. It needs to have room for two 3ph meters, a ripple relay and, 100A main switch plus, two MOG switches.
The Solution:

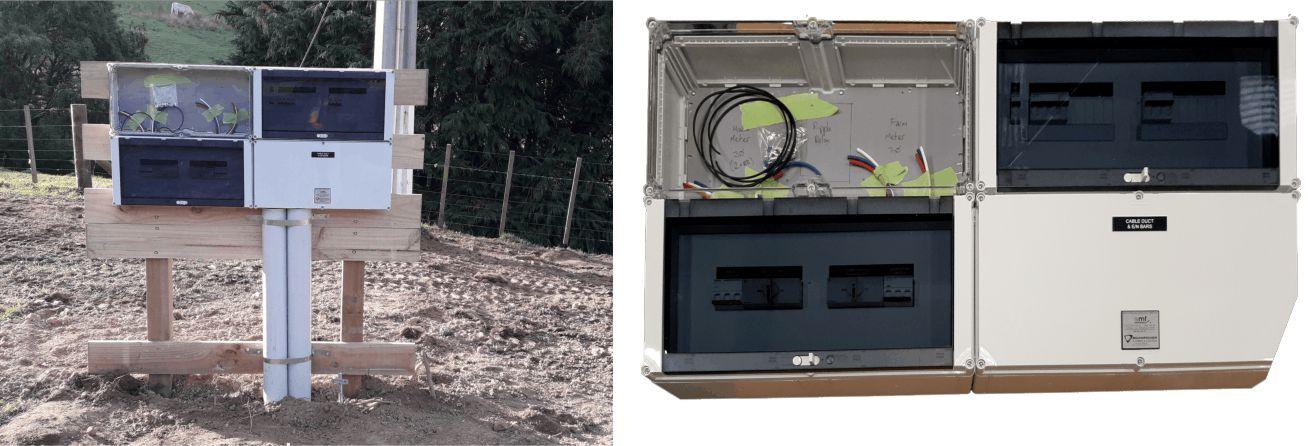

A Cubo P enclosure system that comprises of four 300 x 600 x 185mm enclosures joined together. Two enclosures house the distribution and MOG switches - these have hinging covers to access the switches and, the one with a clear cover has a PVC gear tray for the 3ph meters and relay. Leaving the fourth enclosure as a cable duct for the large incomers.
Benefits:
- Weather-proof, IP & IK rated outdoor switchboard.
- Room for more ways if need be.
- Ample room to mount and wire to the meters.
Parts List :
- x4 PPCF306010B6
- x4 OPCP306006E
- x2 OPCP36OS
- x1 OPCT306003L
- x1 OPCG306003L
- x12 PCP3
- x6 PCSC3
For any enquries about this switchboard, please use code: CS-SPMD
Please state what internal gear you need at time of order.
