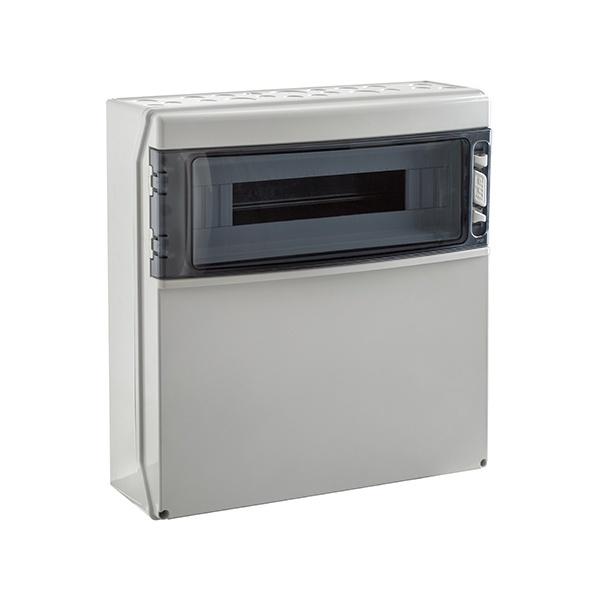

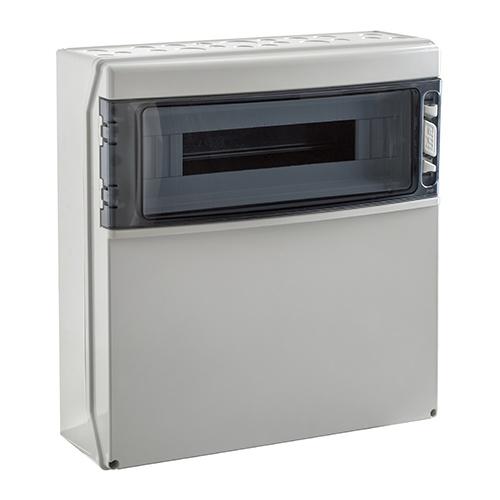

IDE Star series can be used in industrial and outdoor environments. Industrial sites, docks, swimming pools, garages, anywhere that requires a high degree of protection against dust, splashes and impacts. More modules can be added by joining an Ecology enclosure on the top or side. (M25 or M40 glands available, 94273)

This code includes a European style E/N bar. If you want a NZ Style E/N bar, please select your enclosure and E/N bars separately (E/N bars  under IDE Accessories tab)

Enclosure Includes:

• Cover with din slot & hinging window
• Din rail
• E/N bar

Capacity of: 18 single phase ways

Specifications

• Dimensions: 436 x 418 x 147mm
• Code: CSP18PT/EN
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True
• IP Rating: IP65
• IK Rating : IK08
• Chemical Resistance: True

Temperatures

• Flammability Rating: UL 746C 5 inch flame test
• Operating Temperature: -40 ... +80 °C
• Short Term Temperature Range: -40 ... +120 °
• Standards Tested To: EN 62208, UNE-EN 61439-1
