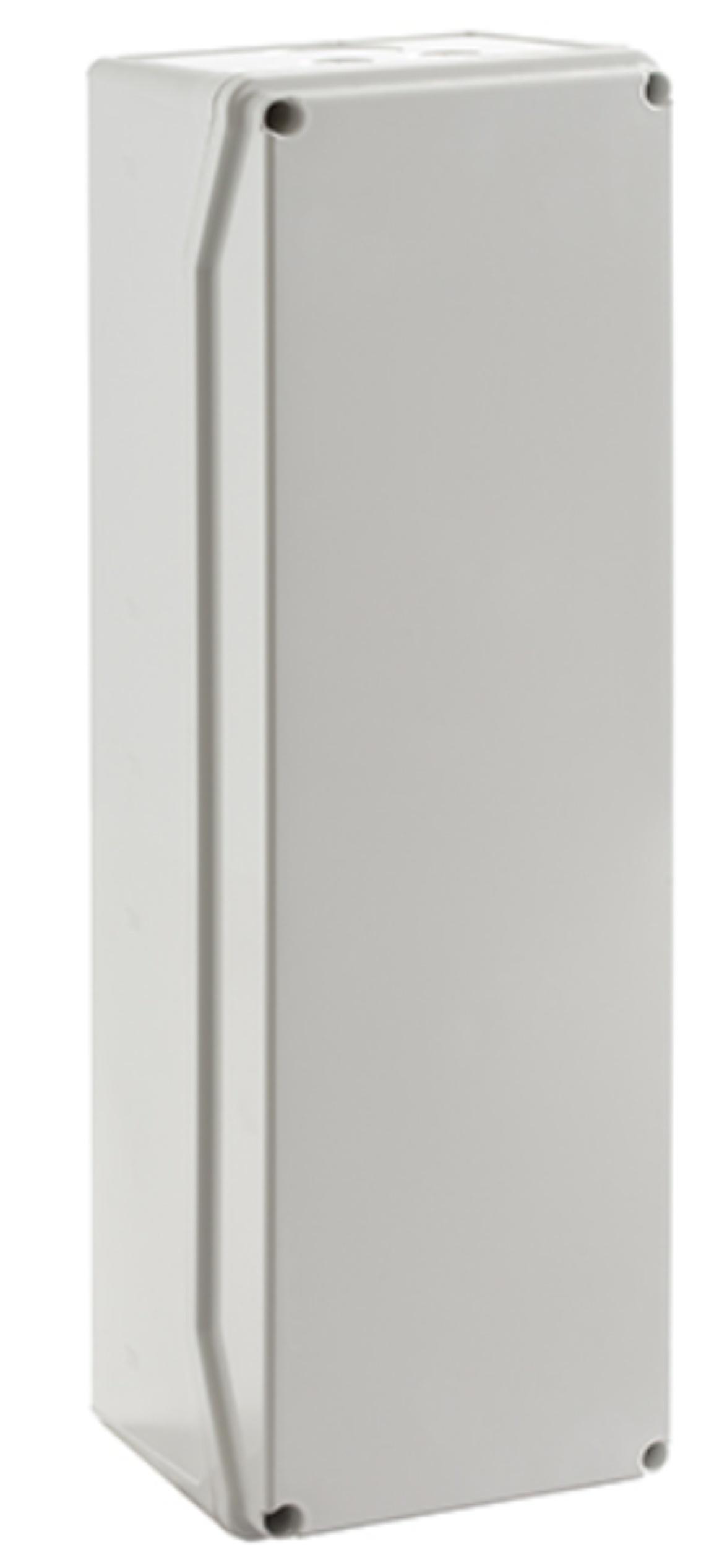

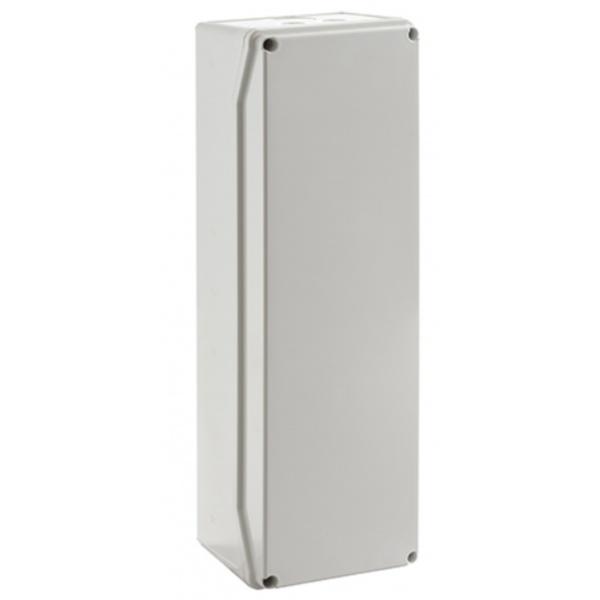

IDE Star series can be used in industrial and outdoor environments. Industrial sites, docks, swimming pools, garages, anywhere that requires a high degree of protection against dust, splashes and impacts. More modules can be added by joining an Ecology enclosure on the top or side. (M25 or M40 glands available, 94273)
Enclosure Includes:
- Hinged Fixed Cover
- No Din rail
- Suitable to use as a cable duct
Specifications
- Dimensions: 142 x 436 x 124mm
- Code: CSPPLUS/RR
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP65
- IK Rating : IK08
- Chemical Resistance: True
Temperatures
- Flammability Rating: UL 746C 5 inch flame test
- Operating Temperature: -40 ... +80 °C
- Short Term Temperature Range: -40 ... +120 °
- Standards Tested To: EN 62208, UNE-EN 61439-1
For stp. dwg. and dxf. files, please click here. Please note: the polycarbonate Star range has been manufactured by request for the New Zealand market. Items on this link will be in ABS materials. The design and dimensions will be the same.
