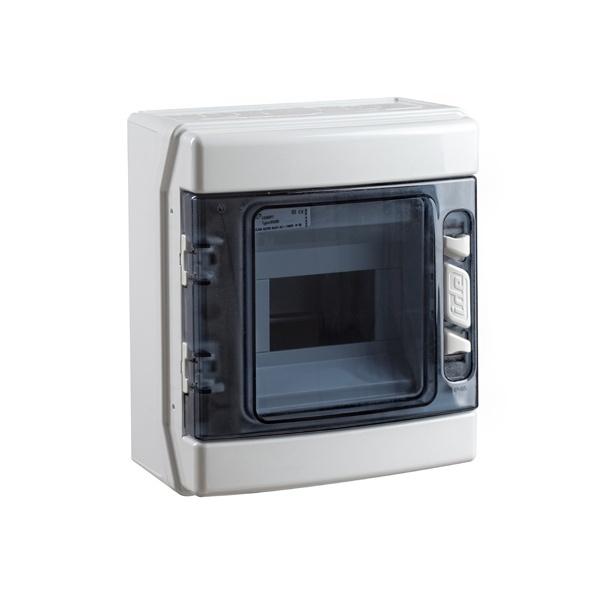

IDE Ecology series can be used in industrial and outdoor environments. Industrial sites, docks, swimming pools, garages, anywhere that requires a high degree of protection against dust, splashes and impacts. More modules can be added by joining an Ecology enclosure on the top or side. (M25 or M40 glands available, 94273)
Enclosure Includes:
- Cover with din slot & hinging window
- Din rail
- E/N bar
Capacity of: 6 single phase ways
Specifications
- Dimensions: 231 x 202 x 113mm
- Number of modules: 1x6 DIN rail
- Code: CDP6PT/EN
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP65
- IK Rating : IK08
- Chemical Resistance: True
Temperatures
- Maximum operating voltage: 1000 V AC / 1500 V DC
- Operating Temperature: -25 ºC / +40 ºC
- Glow wire resistance: 650 ºC
- Standards Tested To: UNE-EN 62208 and IEC 62208
This code includes a European style E/N bar. If you want a NZ Style E/N bar, please select your enclosure and E/N bars separately (E/N bars under IDE Accessories tab)
