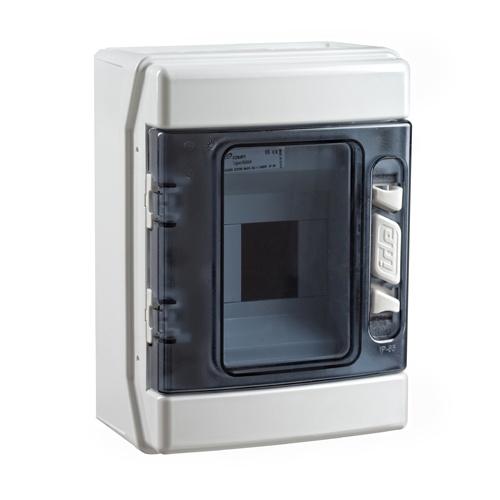

IDE Ecology series can be used in industrial and outdoor environments. Industrial sites, docks, swimming pools, garages, anywhere that requires a high degree of protection against dust, splashes and impacts. More modules can be added by joining an Ecology enclosure on the top or side. (M25 or M40 glands available, 94273)

 Enclosure Includes:

• Cover with din slot & hinging window
• Din rail

Capacity of: 4 single phase ways

Specifications

• Dimensions: 231 x 166 x 113mm
• Number of modules: 1x4 DIN rail
• Code: CDP4PT
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True
• IP Rating: IP65
• IK Rating : IK08
• Chemical Resistance: True

Temperatures

• Maximum operating voltage: 1000 V AC / 1500 V DC
• Operating Temperature: -25 ºC / +40 ºC
• Glow wire resistance: 650 ºC
• Standards Tested To: UNE-EN 62208 and IEC 62208
