Content : Enclosure base, cover, cover screws, internal mounting screws, cover plugs for cover screws.

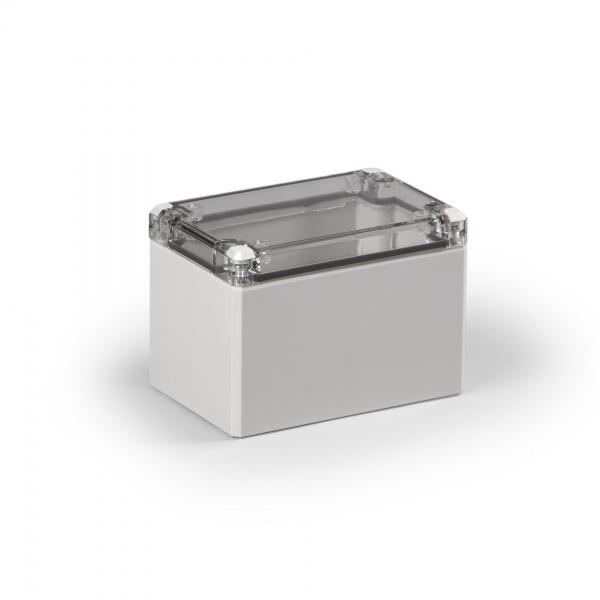

Ensto Cubo D is a series of small enclosures with plain sides. Special features include fastening pods inside the cover and slots for printed circuit boards in the base.
Specifications
- Dimensions: 80 x 120 x 86mm
- Inner Depth: 72.0 mm
- Code: DPCP081209G - Grey Lid , DPCP081209T- Transparent Lid
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True (DSHI1)
- IP Rating: IP66
- IK Rating : IK08
- Chemical Resistance: True
Temperatures
- Flammability Rating: UL 746C 5 inch flame test
- Operating Temperature: -40 ... +80 °C
- Short Term Temperature Range: -40 ... +120 °
- Standards Tested To: EN 62208, UL 508A
For stp. dwg. and dxf. files, please click here.
