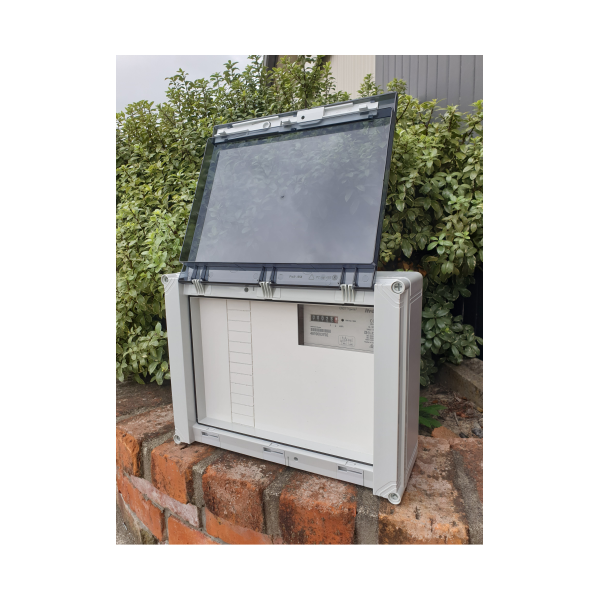

With 12 ways of distribution and room for a 3ph meter, this polycarbonate enclosure provides a weatherproof and durable solution that is IP67 and IK08. This switchboard can be safely washed down (providing the window is properly closed and glands are water-tight) and isn’t prone to denting compared to standard steel cabinets.
Options can include a lockable window, cable hook and various mounting options including pole mount.
Specifications:
- Dimensions: 300 x 600 x 132mm
- 12 way din rail
- Code: ADA4-LTP
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP67
- IK Rating : IK08
- Chemical Resistance: True
This includes:
- 1 x 24 way din rail
- 1 x OPCP306013OS
- 4mm typanel geartray for meter
Options:
Lockable window, mounting feet, series of plugs or outlets.
