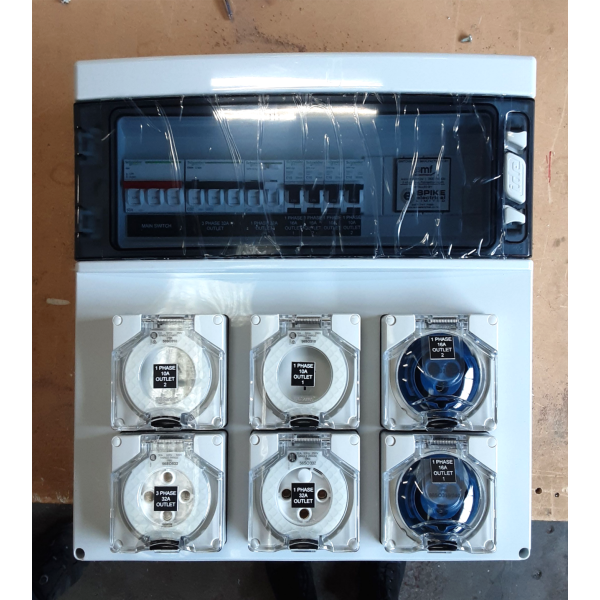

Fast, efficient and easy to use. What more could you ask for from a portable outlet box? This box can be brought to site as a temporary power box, or used as a permanent connection point.
Specifications:
- Dimensions: 436 x 418 x 147mm
- Main Switch size: 63A
- Code: ADA1-63LG
- Range: Star
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP66
- IK Rating : IK08
- Chemical Resistance: True
This includes:
- 1 x 63A main switch
- 1 x CSP18PT (enclosure with din rail)
- E/N bar to suit
Free issued outlets:
- 2 x 1ph, 10A
- 1 x 3ph, 32A
- 1 x 1ph, 32A
- 2 x 1ph, 16A
Options:
For an enclosure supplied with just cover cutouts, please see the Enclosure Customization page.
