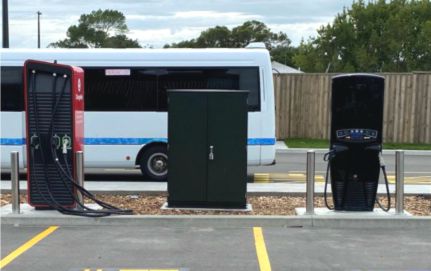

This distribution board was designed specifically for two ChargeNet fast chargers at a regional community center. This switchboard needed to have room for the main switch and two large submains as well as metering and room for controls. This switchboard was mounted in a lockable kiosk to provide weather protection, tamper and impact resistance as this switchboard was installed curb side.
Specifications:
- Dimensions: 1750 x 1100 x 550mm
- Code: ADA8-630EV
- Range: Kiosk
- Switchboard Materials: 1.2mm powdercoated mild steel
- Kiosk Materials: 3mm Aluminium powdercoated
- Ground Mount
- IP Rating: IP55
- IK Rating: IK08
This includes:
- 1 x 630A INS main switch
- 2 x 4 pole MCCB submains for fast chargers
- Studded E/N bar
- CT metering
- Room for controls
- 3mm Aluminium Kiosk
Options:
- Custom kiosk color (this one was wrapped by our customer)
