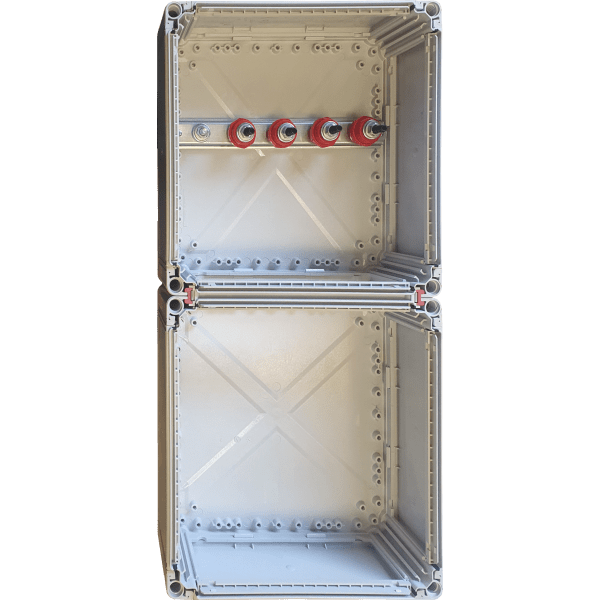

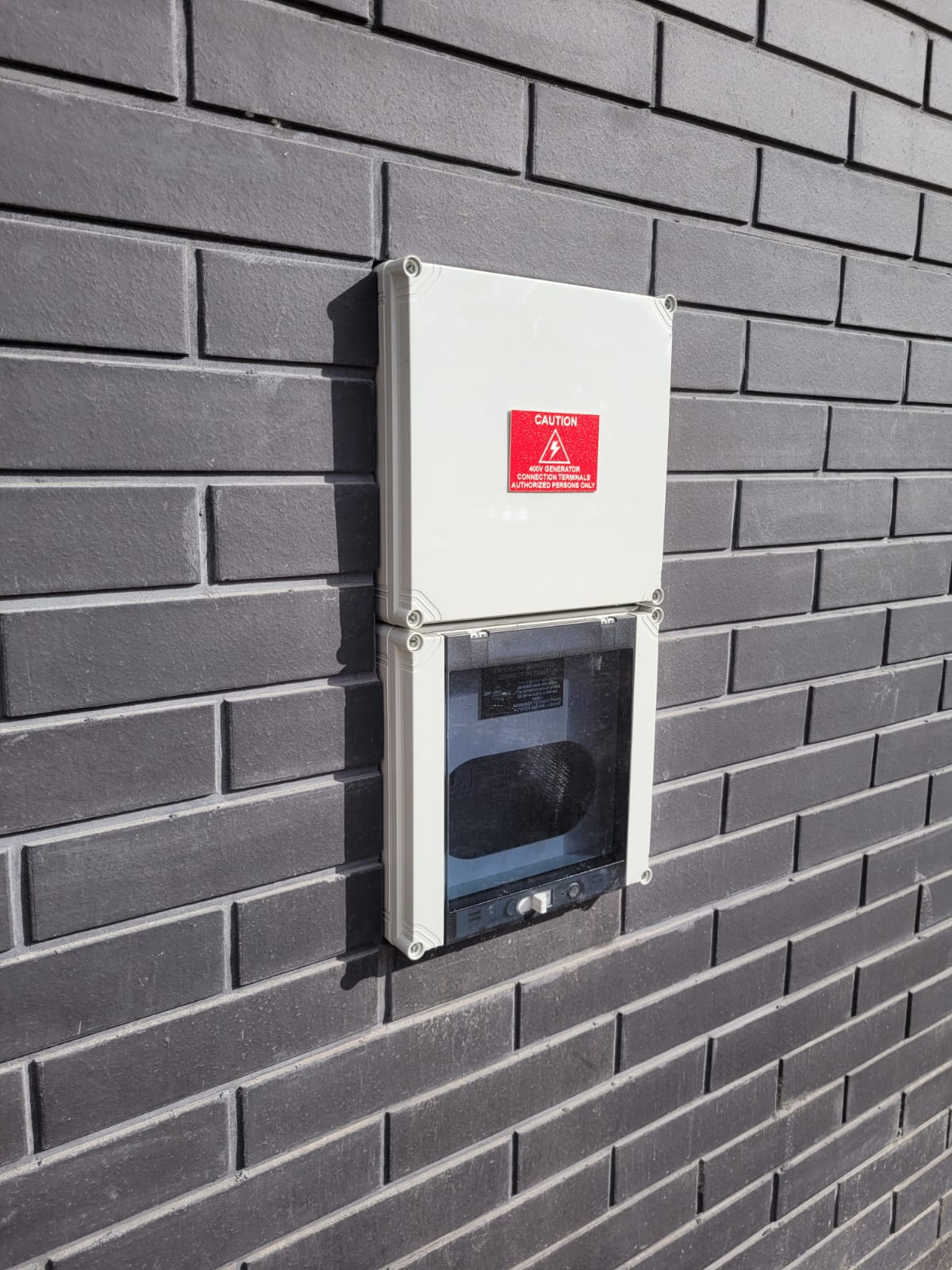

Temporary generator connection point consists of two 300 x 300mm Cubo P bases, studs for the generator connection, space below for termination, and a hinging window for an easy temporary connection. Because the incomers enter through the front flap, this solution can be semi recessed into a wall. The end result is the perfect balance between function and style. ADA6-GENP

Permanent generator connection has the same stud bar configuration in the top enclosure and extra space below for termination. Because this connection is permanent, there is no need to have a hinging cover for incomers. We have painted these enclosures in the past to seamlessly match the wall it is going on. Please let us know at time of order if you need yours painted. ADA6-GENP.1

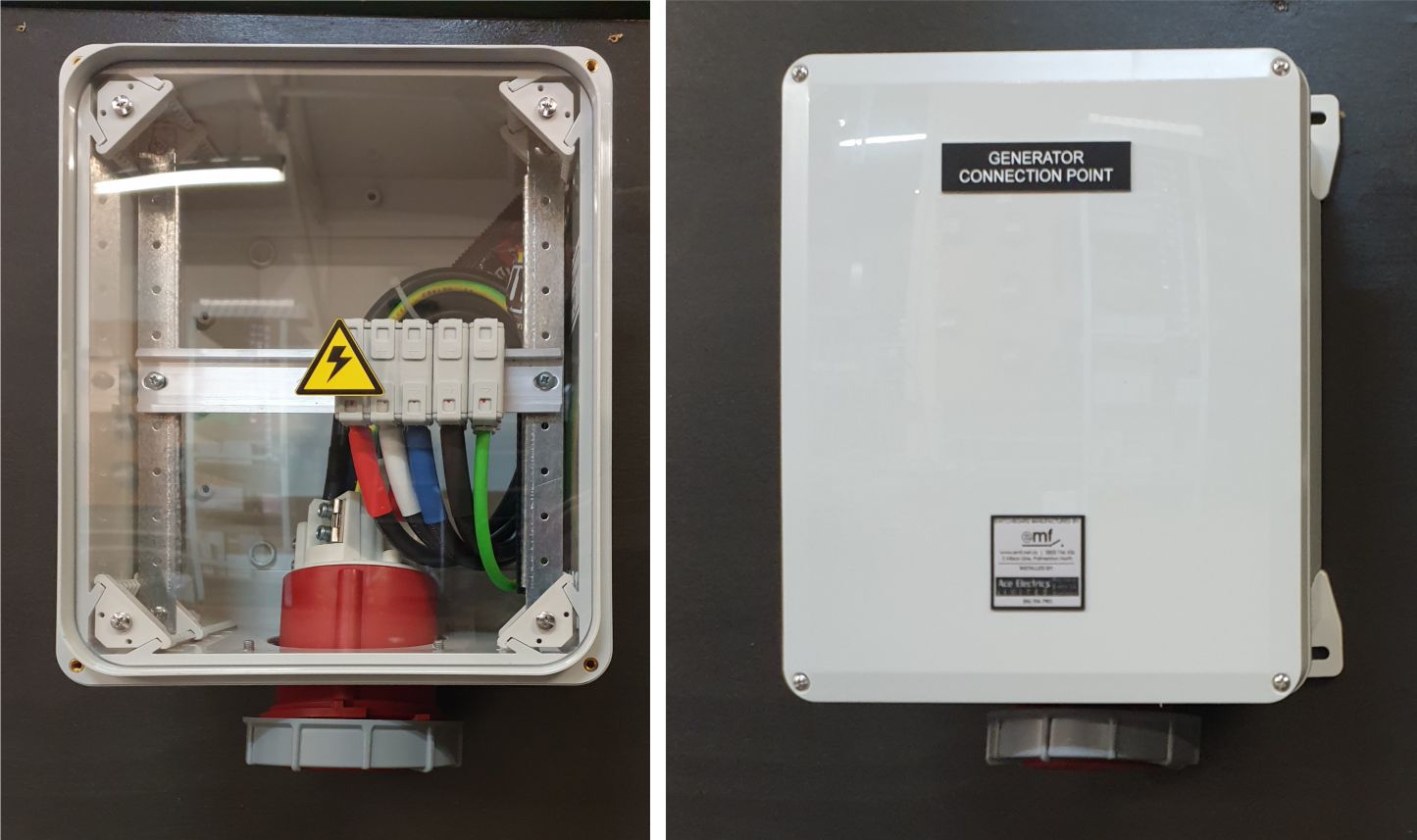

PolyBox Generator Connection  is ideal for connection points in high impact areas, and when extreme protection is needed. Or if you need an enclosure with a padlockable cover (the one shown has a fixed cover). This solution comes with a plug, Al/Cu terminals, clear masking panel, and wiring from terminals to plug. ADA6-GENA

Stainless Steel Power Lock Generator Connection. PowerLock connectors are panel mount source power connectors for up to 400A, and are safe to use outdoors and in harsh conditions. Paired with a stainless enclosure and copper connections, this makes for safe and easy to use outdoor generator connection point. ADA6-GENPWR

Specifications:

This includes:

Options:

See another generator connection solution here.

For stp. dwg. and dxf. files, please click here.

For trade pricing and stock information, please go to the re-seller login.
