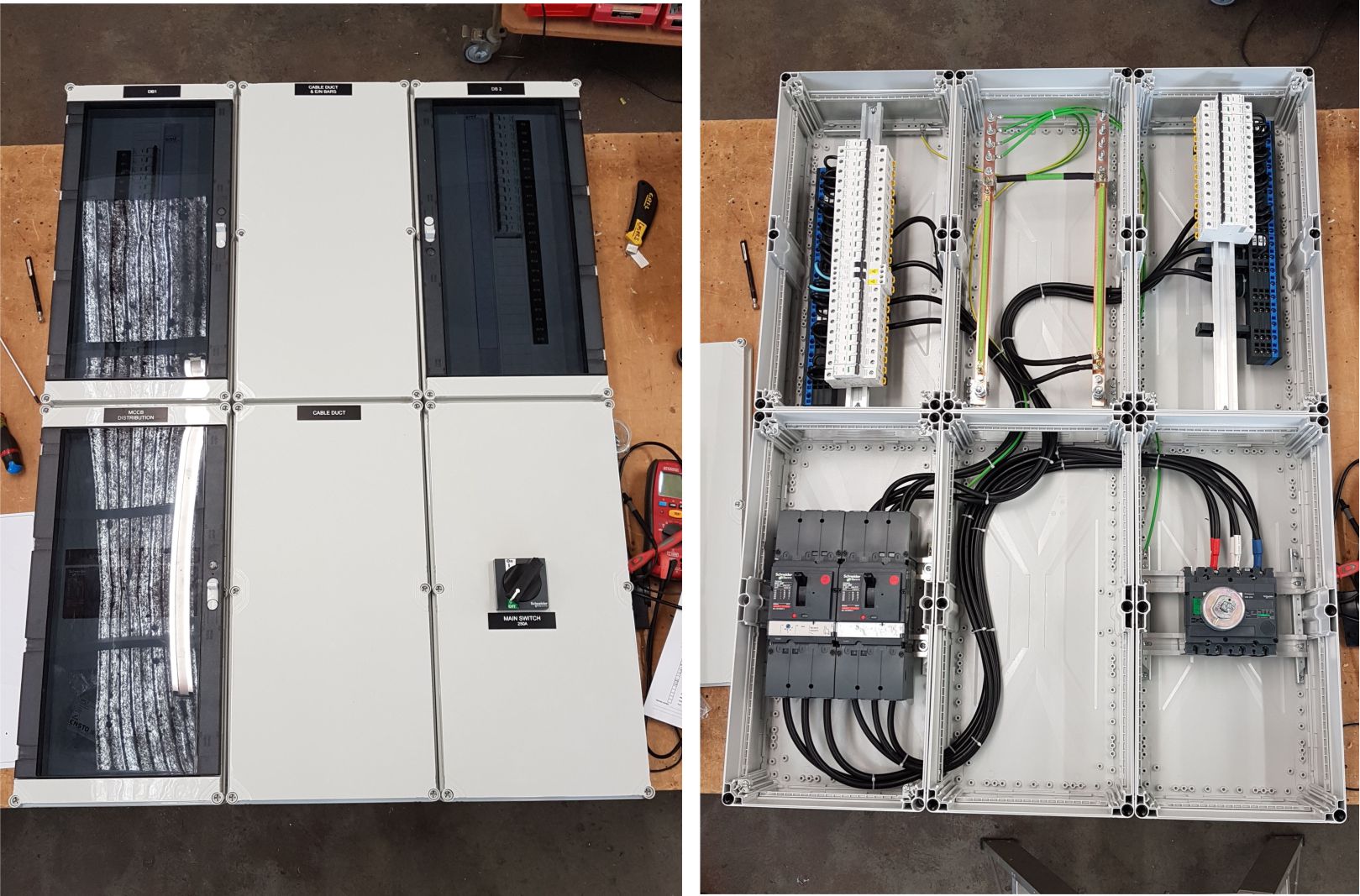

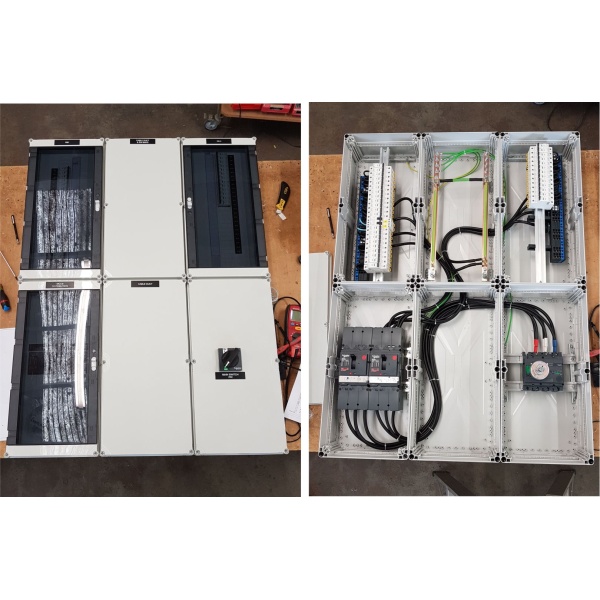

250A INS main switch, room for 48ways, and MCCBs for future distribution.
Specifications:
- Dimensions: 1200H x 900W x 187mm
- Main Switch size: 250A
- Code: ADA2-200DB
- Range: Cubo P
- Base Materials: Polycarbonate
- Cover Materials: Polycarbonate
- Wall Fastening Possible: True
- IP Rating: IP67
- IK Rating : IK08
- Chemical Resistance: True
This includes:
- Up to 250A INS main switch
- space for x 2 MCCBs
- 2 x 8TP Multiclips
- E/N bars to suit
Options:
- Cabinet painted same color as the wall
- lockable doors
- Add cabinets to allow room for meter & CTs
