24 Way Outdoor Distribution / CS-63WB

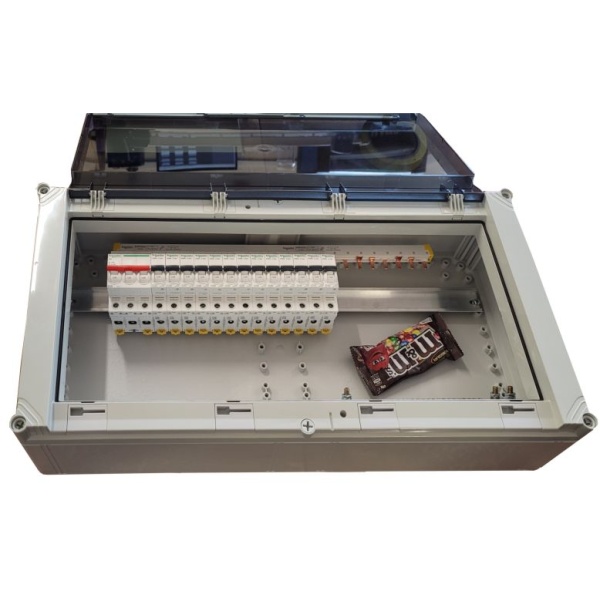

24 single phase ways, 100A outdoor distribution. There is an option to choose between comb bar or Multiclip distribution. Multiclip allows the mixture of MCBs and RCBOs on the same rail.

Specifications:

  • Dimensions:  300 x 600 x 187mm
  • Main Switch size: 100A
  • Code: CS-63WB
  • Range: Cubo O
  • Base Materials: Polycarbonate
  • Cover Materials: Polycarbonate
  • Wall Fastening Possible: True
  • IP Rating: IP67
  • IK Rating : IK08
  • Chemical Resistance: True

This includes:

  • OPCP306018OS (includes cover, extension frame & din rails)
  • 100A Main Switch
  • 8TP Multiclip distribution
  • Or, 3ph, 24 way comb bar
  • 24 way E/N bar

Options:

  • If you need extra MCBs or RCBOs wired into the distribution, please send us a list of what you need at time of order.
  • Lockable Window

If you need to use all 24 ways, we would recommend using this option >click here because this size can get a bit tight to wire.

Click here to see more options of enclosures with hinging windows & din slots.
