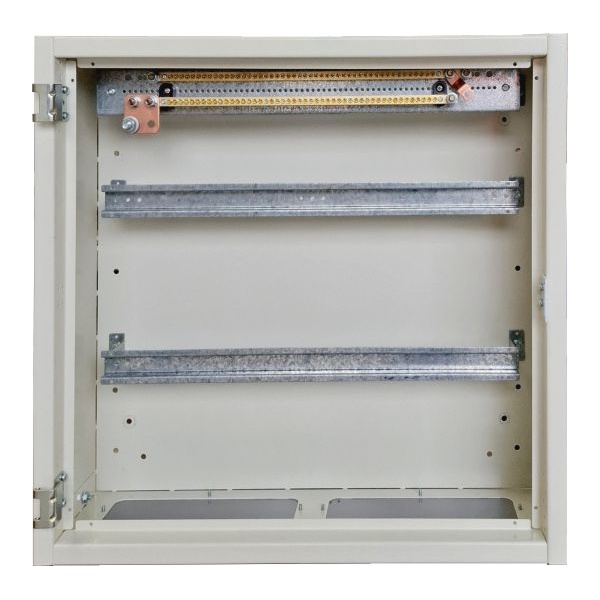

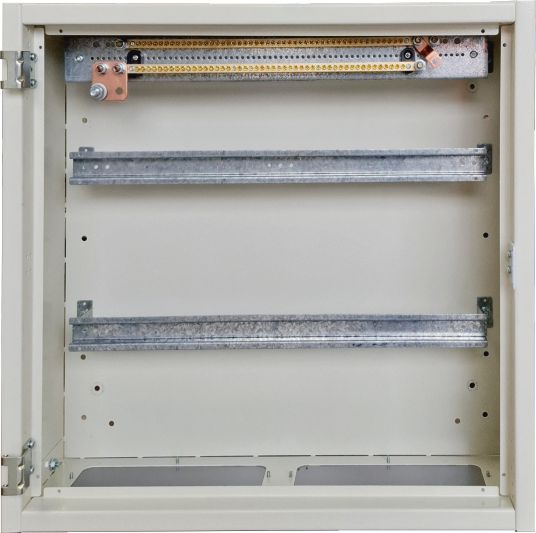

Distribution cabinet with space for up to 24 ways and extra rail for Main Switch.

Switchboard Includes:

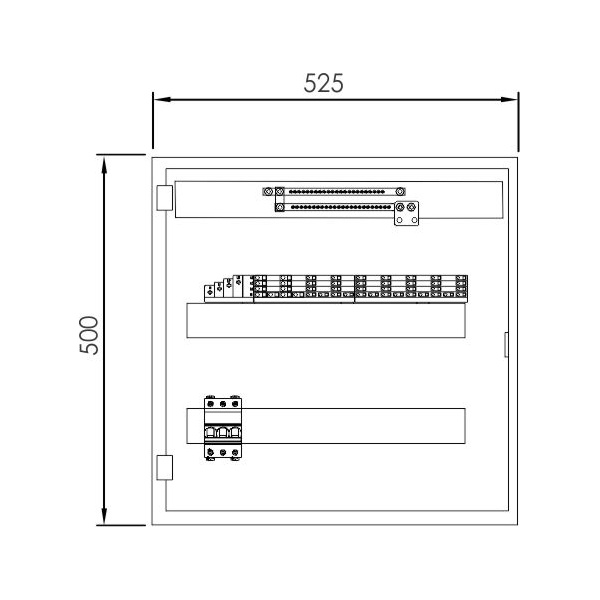

• DCPF500 500 x 525 x 160mm (2 DIN rail cabinet)
• DIN rails: 2 x 24 way DIN rails
• No wiring unless requested
• Main Switch: 100A
• E/N bar to suit mounted at the top or bottom.

Distribution:

• Comb Bar
  • 1 x 24 way comb bar
• Multiclip Distribution
  • 1 x 8TP multiclip
• No Distribution
  • Comes with just the 2 x 24 way DIN rails

Comb Bar Option: DCPF500CB

Multiclip Option: DCPF500MC

No Distribution: DCPF500DR
